Ebara 3000 PSI, 2400 HP, 5600 RPM Barrel Pump

EMNOR Mechanical Inc. | Ebara 3000 PSI Barrel Pump Technical Drawing

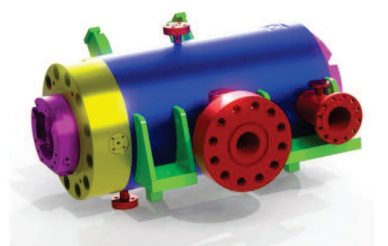

EMNOR Mechanical Inc. | Ebara 3000 PSI Barrel Pump Assembly 3D Render

Render of Barrel Assembly

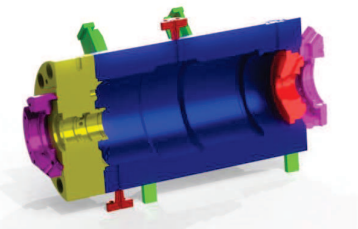

EMNOR Mechanical Inc. | Ebara 3000 PSI Barrel Pump Assembly Cross Section 3D Render

Render of Cross Section of Barrel Assembly

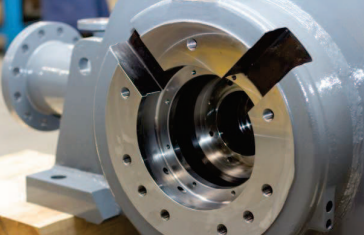

EMNOR Mechanical Inc. | Ebara 3000 PSI Barrel Pump Cast WCB Discharge Side and Outer End-Head

Cast WCB Discharge Side
Outer End-Head welded onto main body

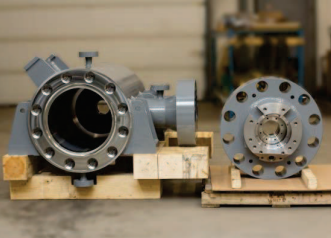

EMNOR Mechanical Inc. | Ebara 3000 PSI Barrel Pump Finished Outer Barrel Assembly

Finished Outer Barrel Assembly

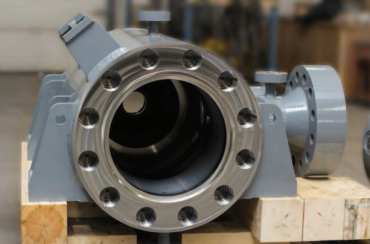

EMNOR Mechanical Inc. | Ebara 3000 PSI Barrel Pump Barrel Body

Barrel Body

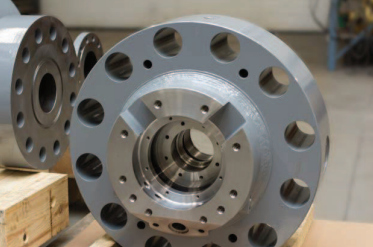

EMNOR Mechanical Inc. | Ebara 3000 PSI Barrel Pump Cast WCB Suction Side Outer End-Head and Forged A105 Inner End-Head

Cast WCB Suction Side Outer End-Head
Welded onto forged A105 Inner End-Head

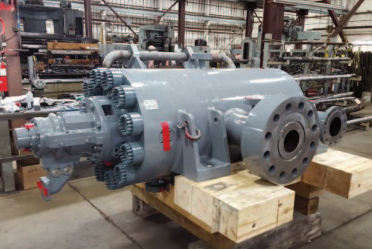

EMNOR Mechanical Inc. | Ebara 3000 PSI Barrel Pump Finished Assembly

Finished Assembly

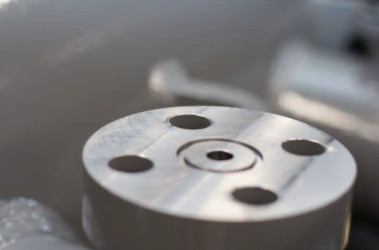

EMNOR Mechanical Inc. | Ebara 3000 PSI Barrel Pump Flanges Machined from Solid Forged A105

All flanges machined from solid forged A105
