9,500 lb. DeLaval Pump Casing and Double Suction Impeller

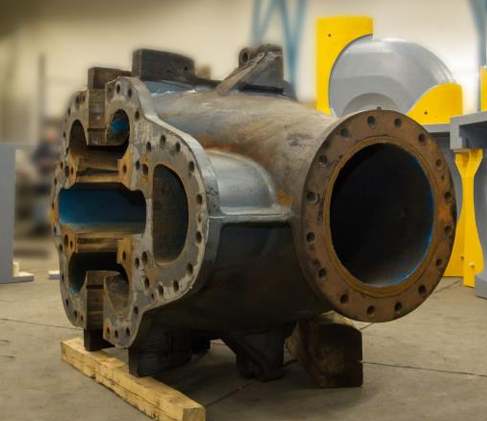

EMNOR Mechanical Inc. | DeLaval 9500 lb Worn Pump Casing

Worn Casing

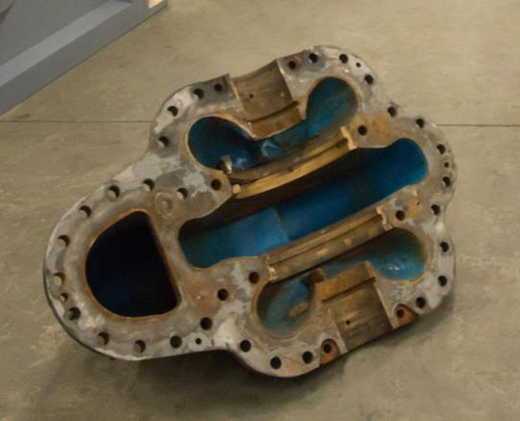

EMNOR Mechanical Inc. | DeLaval 9500 lb Worn Pump Casing Interior

Worn Casing

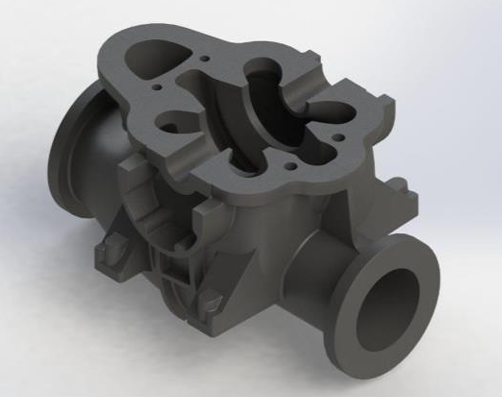

EMNOR Mechanical Inc. | DeLaval 9500 lb Pump Casing 3D Model

3D Model

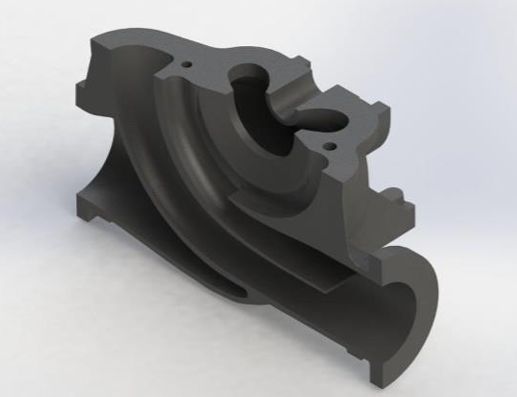

EMNOR Mechanical Inc. | DeLaval 9500 lb Pump Casing Cross Section 3D Model

3D Model

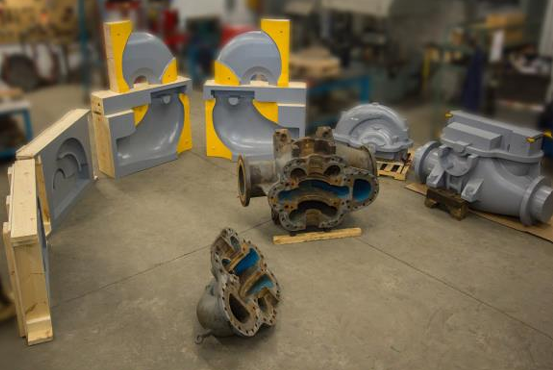

EMNOR Mechanical Inc. | DeLaval 9500 lb Pump Casing Manufacturing Patterns

Patterns

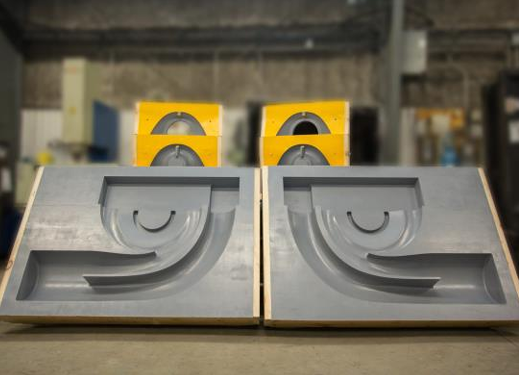

EMNOR Mechanical Inc. | DeLaval 9500 lb Pump Casing Pattern Halves

Patterns

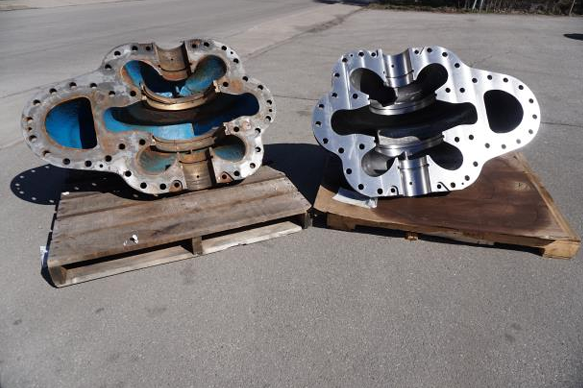

EMNOR Mechanical Inc. | DeLaval 9500 lb Old and New Pump Casing Comparison

Old & New Casing

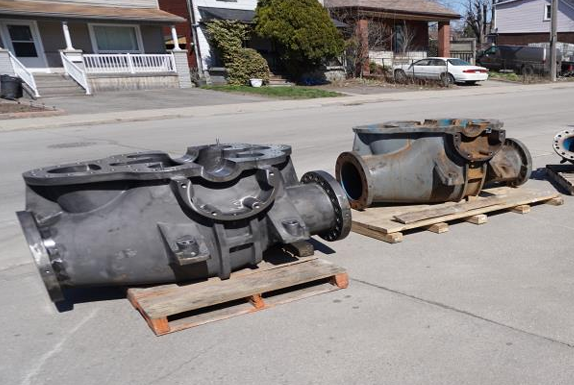

EMNOR Mechanical Inc. | DeLaval 9500 lb Old and New Pump Casing Assemblies

Old & New Casing

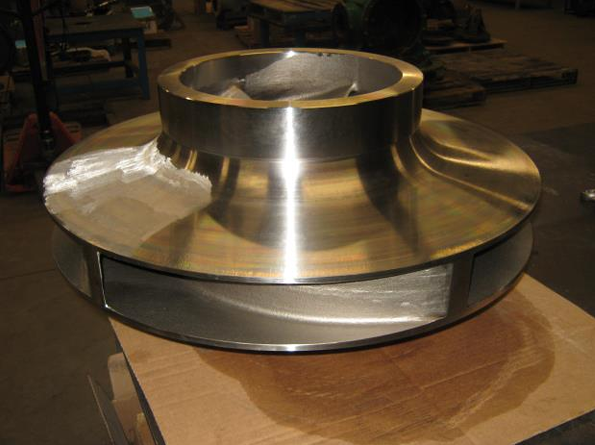

EMNOR Mechanical Inc. | DeLaval 9500 lb New Double Suction Pump Impeller Side View

New Double Suction Impeller

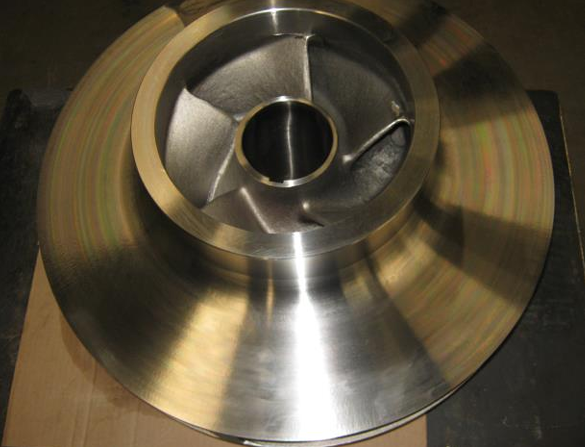

EMNOR Mechanical Inc. | DeLaval 9500 lb New Double Suction Pump Impeller Top View

New Double Suction Impeller

Our customer required replacement of their worn 50 year old casing and wanted prices for new pumps. The new pumps however, do not fit the same as the existing parts, so the customer would have had to purchase an entire new system. The price of the new system was very high due to the various additional pieces such as piping changes, a new motor, as well as the labour to create the system.  With reverse engineering, Emnor was able to produce the pattern, casing, and double suction impeller necessary for the customer’s system, at a more economical price.
