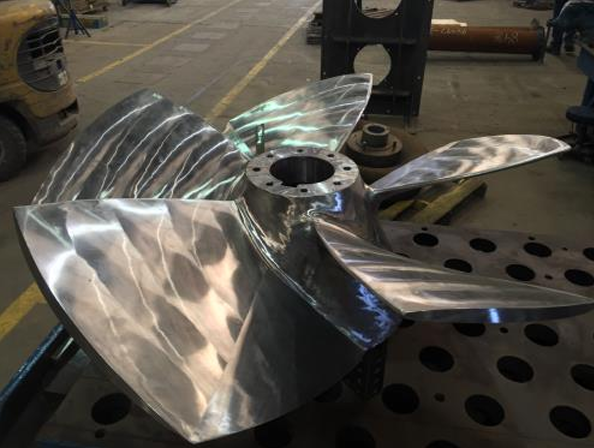

Sulzer and Fairbanks Morse Vertical Pump Repair

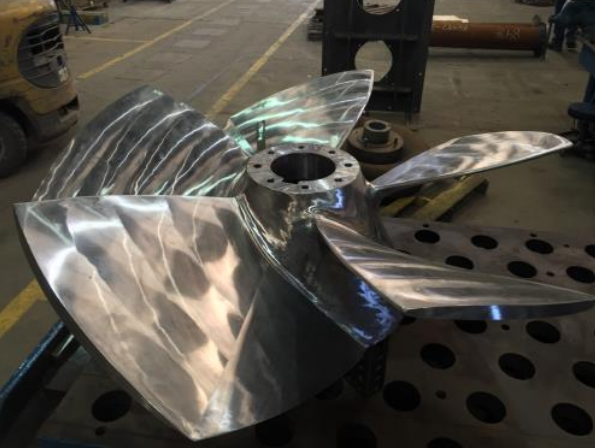

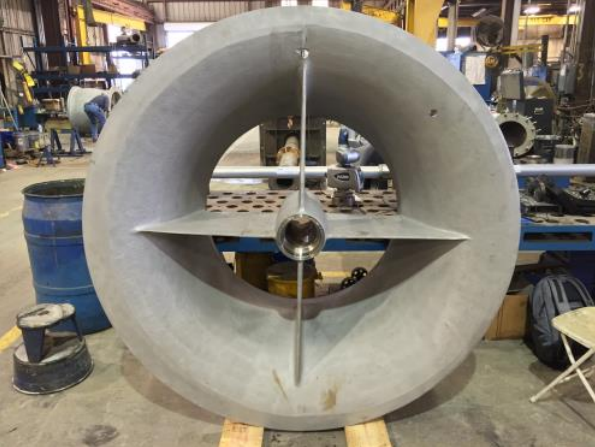

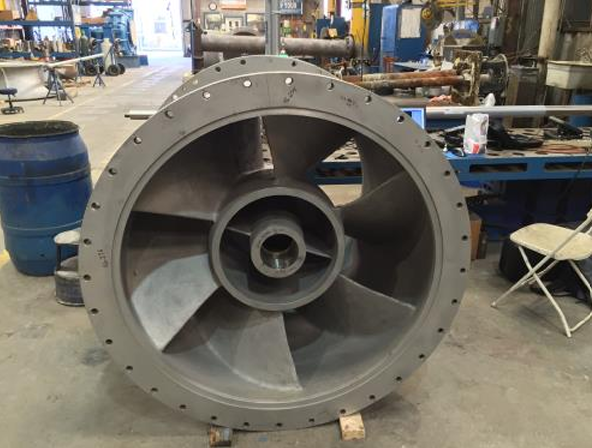

On-Site Measurement of Parts

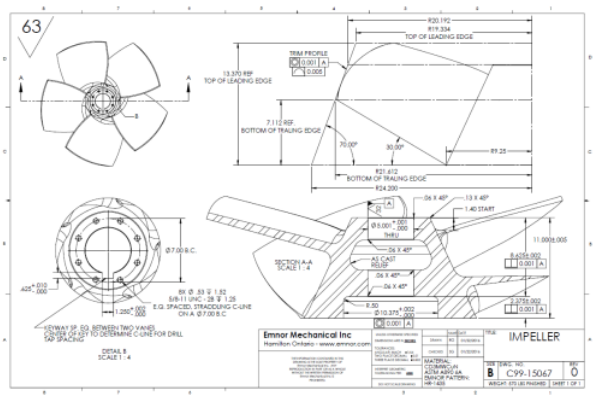

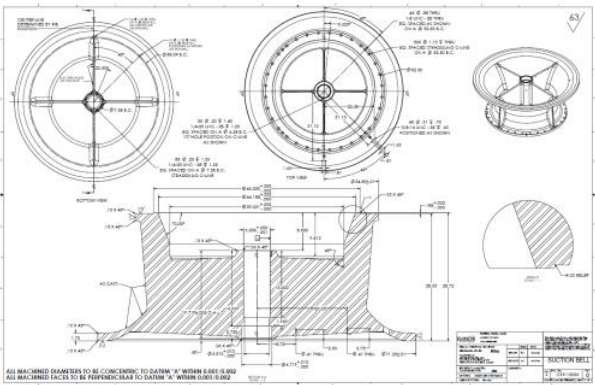

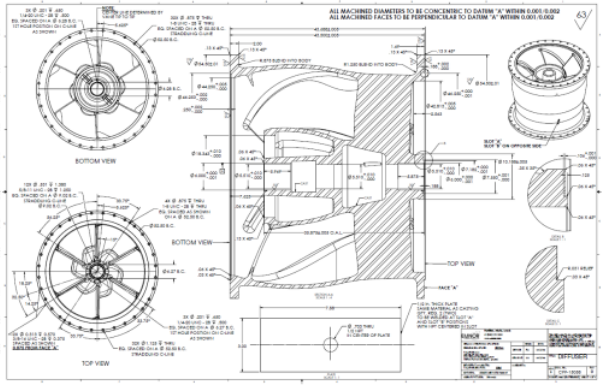

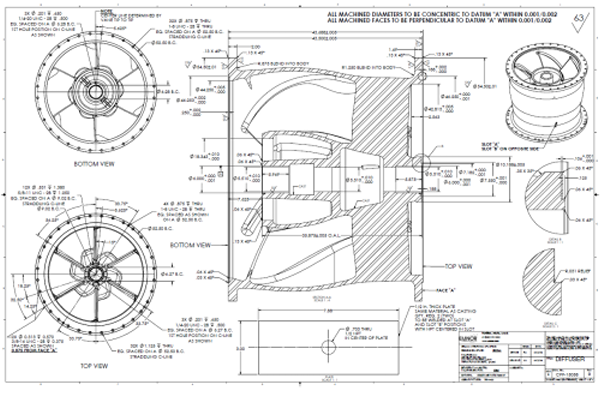

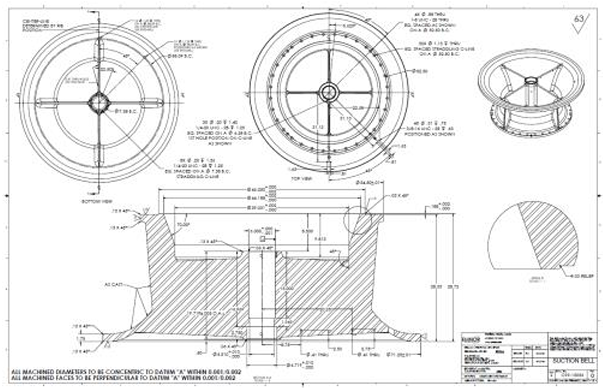

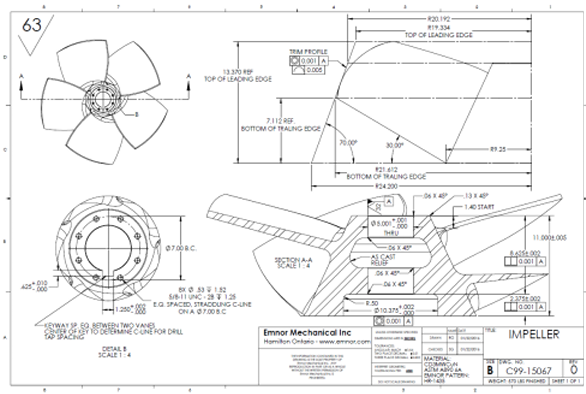

Creation of 2D Production Drawings

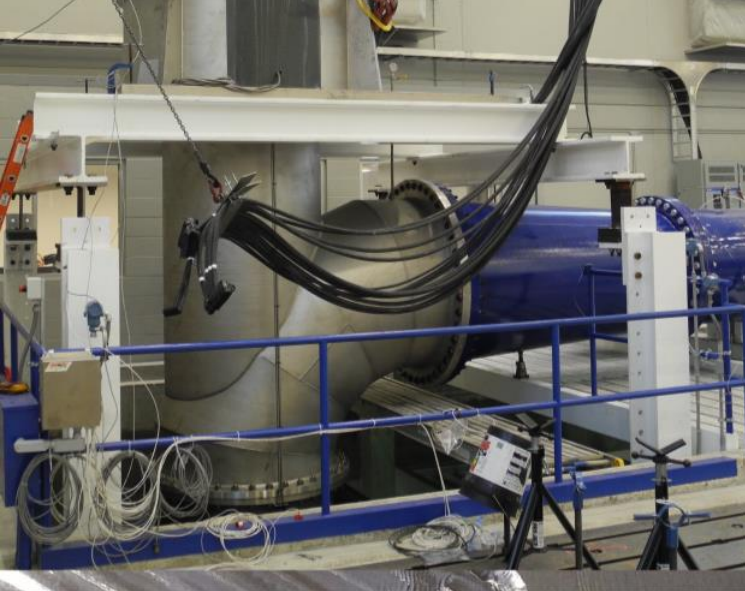

Calculated Outputs Corrected for Speed and Specific Gravity
Data Point	Flow	TDH	BHP	WHP	Pump Efficiency	NPSH3
1	15262.09 gpm	35.23 ft	474.39	139.87	29.48 %	N/A
2	25220.76 gpm	27.08 ft	400.62	177.61	44.33 %	N/A
3	36666.76 gpm	31.75 ft	451.58	302.8	67.05 %	N/A
4	41216.46 gpm	30.46 ft	446.09	326.5	73.19 %	N/A
5	46429.97 gpm	28.53 ft	446	344.52	77.25 %	N/A
6	53086.46 gpm	25.78 ft	438.55	355.97	81.17 %	N/A
7	56886.16 gpm	23.56 ft	417.06	348.67	83.6 %	N/A
8	58043.98 gpm	23.38 ft	411.81	352.96	85.71 %	N/A
9	62762.77 gpm	21.67 ft	414.13	353.78	85.43 %	N/A
10	65007.72 gpm	20.11 ft	394.05	340.09	86.31 %	N/A
11	72010.4 gpm	15 ft	374.42	280.89	75.02 %	N/A

Results Showed 1.5 % Efficiency Gain Over Original Curve

Whether you need your large vertical pump repaired, parts for an existing unit, or complete turn-key solutions EMNOR is here to help.
